Choose a GKD vertical machining center by matching X/Y/Z travel, table area, load capacity, spindle speed and guideway design to the largest planned workpiece. The verified range spans VMC855 with 800 × 550 × 550 mm travel, VM1167 with 1100 × 600 × 700 mm travel, and VMC1690 with 1600 × 900 × 680 mm travel. Table capacity rises from 500 kg on VMC855 to 1600 kg on VMC1690. Buyers should confirm fixture height, tool count, controller, material and required surface finish before requesting a quotation. This page links five published machine records and preserves model-level specifications for comparison.
Buyer guide
The category contains five published machine records, and four include model-level specification tables. Verified models include VMC855, VM1167 and VMC1690, while V600 specifications remain pending confirmation.
VMC855 provides 800 × 550 × 550 mm X/Y/Z travel and a 1000 × 550 mm worktable. The retained table-load value is 500 kg.
VM1167 increases X/Y/Z travel to 1100 × 600 × 700 mm and provides a 1200 × 600 mm worktable. Its verified maximum table load is 800 kg.
VMC1690 provides 1600 × 900 × 680 mm X/Y/Z travel and an 1800 × 900 mm worktable. Its table supports 1600 kg, and the retained spindle-speed value is 8000 rpm.
Confirm workpiece dimensions after fixturing, total fixture weight, material, tool count and required finish. Those five inputs can be checked against travel, table size, load and spindle data before quotation.
V600

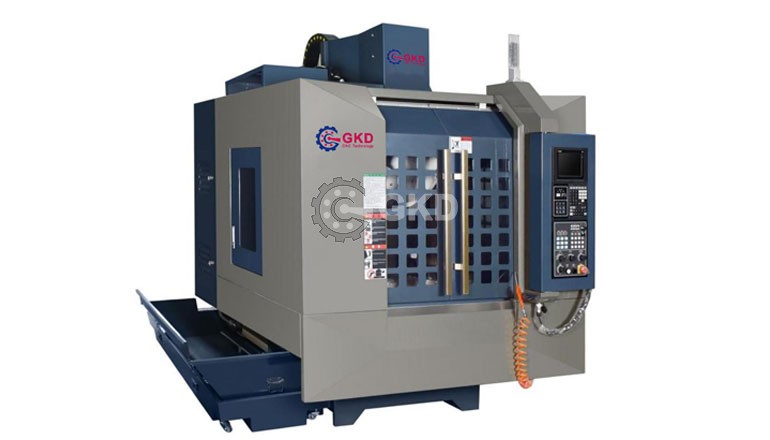

This retained GKD V600 record identifies a three-axis BT40 milling, drilling and tapping machining center and preserves its original machine image. Exact controller, travels, spindle performance and other technical specifications remain pending confirmation; no local V600 document is available.
View machine
VMC1690
VMC1690-vertical-milling-center-box wayNO.ACCESSORIESREMARK1.2.3.4.Chip conveyorCoolant through spindle(CTS)Auto tool measuring systemAuto workpiece measuring system
View machineFAQ
This category contains five published records; four currently include structured model-level specifications.
VMC855 is listed with 800 × 550 × 550 mm X/Y/Z travel and a 500 kg maximum table load.
VM1167 has a documented 1200 × 600 mm worktable with an 800 kg maximum load.
VMC1690 has the largest published travel at 1600 × 900 × 680 mm and a 1600 kg table capacity.
Include workpiece and fixture dimensions, combined weight, material, tool count, tolerance and required surface finish.
