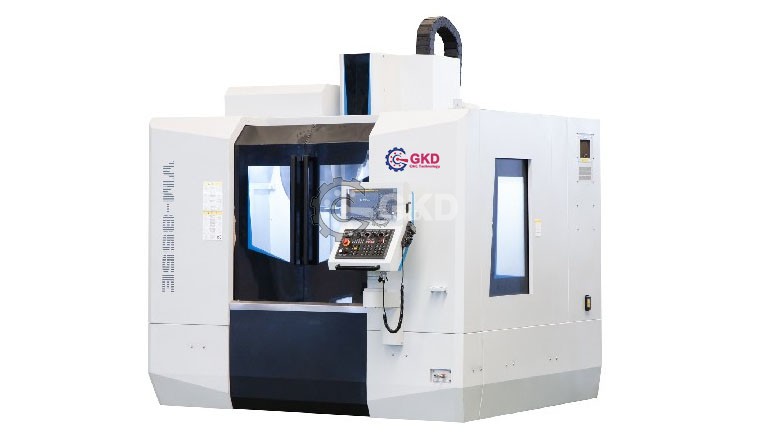

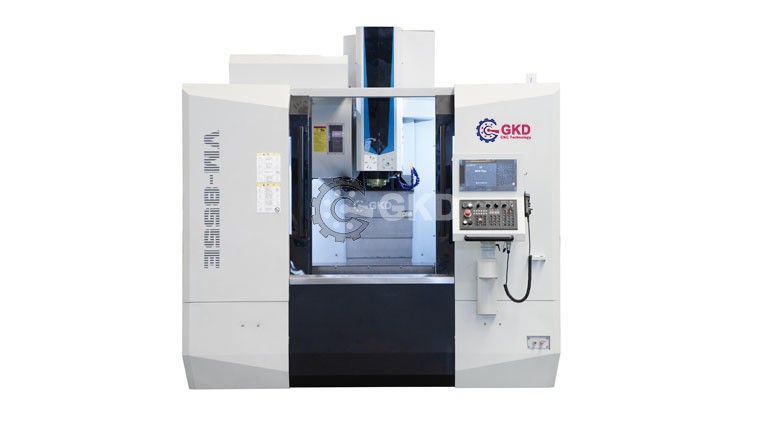

Model | VMC855 |
Stroke | |
X-axis travel (mm) | 800 |
Y-axis travel (mm) | 550 |
Z axis travel (mm) | 550 |
Spindle nose to the table (mm) | 135-685 |
Spindle Center to Column Guideway (mm) | 590 |
Guide width X/Y/Z (mm) | 35 |
Screw diameter (mm) | 40 |
Screw Pitch (mm) | 16 |
Workbench | |
Workbench area (mm) | 1000x550 |
Maximum load (kg) | 500 |
T-slot (size x spacing) (mm) | 18×90 |
Feed | |
Three-axis fast-moving speed (m/min) | 48/48/36 |
Cutting feed rate (mm/min) | 1-10000 |
Spindle | |
Spindle speed (r.p.m) | 8000-10000 |
Spindle type | BT40/BBT40 |
Spindle motor power (KW) | 7.5 |
Other | |
Controller | Mitsubishi |
Three-axis motor power (KW) | 2.0/2.0/3.0 |
positioning accuracy (mm) | ±0.005/300 |
Repeatability positioning accuracy (mm) | ±0.003/300 |
Tool magazine type (pcs) | 24 ATC |
Tool change time (s) | 1.2 |
Max tool weight (kg) | 8 |
Machine weight (kg) | 5270 |
Machine size (mm) | 2700x2300x2550 |
