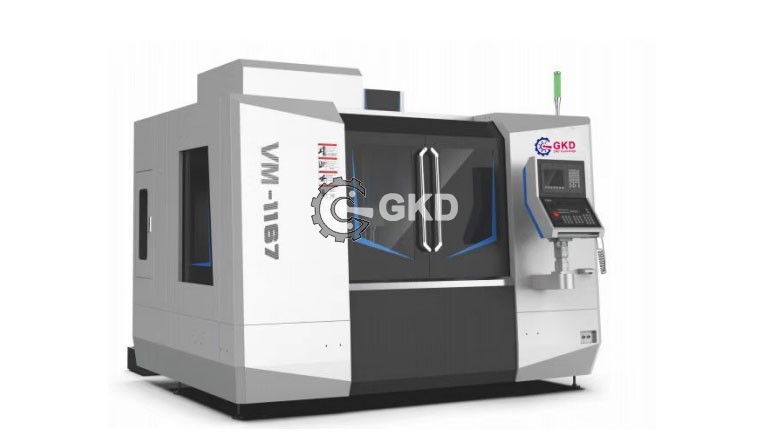

Model | VM1167 |
Stroke | |
X-axis travel (mm) | 1100 |
Y-axis travel (mm) | 600 |
Z axis travel (mm) | 700 |
Spindle nose to the table (mm) | 97-794 |
Spindle Center to Column Guideway (mm) | 654 |
Guide width X/Y/Z (mm) | 45 |
Screw diameter (mm) | 40 |
Screw distance(mm) | 12 |
Workbench | |
Workbench area (mm) | 1200x600 |
Maximum load (kg) | 800 |
T-slot (size x spacing) (mm) | 18×110 |
Feed | |
Three-axis fast-moving speed (m/min) | 36/36/30 |
Cutting feed rate (mm/min) | 1-10000 |
Spindle | |
Spindle speed (r.p.m) | 8000-10000 |
Spindle type | BT40/BBT40 |
Spindle motor power (KW) | 11 |
Other | |
Controller | Mitsubishi |
Three-axis motor power (KW) | 2.0/2.0/3.0 |
positioning accuracy (mm) | ±0.005/300 |
Repeatability positioning accuracy (mm) | ±0.003/300 |
Tool magazine type (pcs) | 24 ATC |
Tool change time (s) | 1.2 |
Max tool weight (kg) | 8 |
Machine weight (kg) | 6400 |
Machine size (mm) | 3190x2763x3000 |
