5 axis CNC

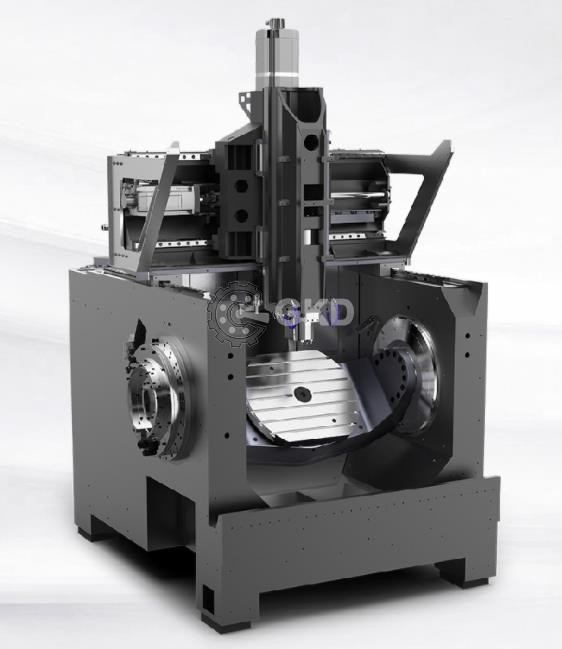

KMC600 5 axis milling center

contact
  • SPECIFICATION
  • SUMMARY DETAILS
  • VIDEOS
  • Work area

    X-Y-Z Axis travel

    650-650-450mm

    A Axis travel

    -130°~ +130°

    C Axis travel

    Unlimited

    Maximum turning diameter

    φ800mm

    Maximum processing height

    3 Axis working)

    450mm

    Maximum processing height

    5 Axis simulation)

    420mm

    Optical ruler measuring system

    Linear axis control method

    Fully closed loop

    Rotary axis control method

    Circular grating

    Linear axis resolution

    0.0001mm

    Rotational axis resolution

    0.0001°

    Positioning accuracy

    X-Y-Z Axis

    according to VDI/DGQ 3441)

    0.008mm

    A-C Axis

    8″-8″

    Repeatability

    X-Y-Z Axis

    0.005mm

    A-C Axis

    5″-5″

    Online data

    Power supply

    380V/50Hz

    Maximum power consumption

    57Kw

    Machine weight

    About 13000kg

    Compressed air

    No lower than 6bar

    Compressed air flow

    About 500L/min

    NOTE: The compressed air must be pure, dry and oil-free!

    Spindle 14,000rpm,GMFE08D-4QS

    Spindle type

    Built-in synchronous

    motorized spindle

    Torque S1/S6

    84Nm/125Nm

    Power

    30Kw

    Maximum speed

    14,000rpm

    Spindle orientation

    Yes

    HSK-A 63

    Spindle nose

    DIN 69063-HSK-A63

    Tool handle

    DIN 69893-HSK-A63

    36pcs tool magazine

    Tool magazine position

    36pcs

    Maximum diameter of tool (adjacent tool)

    80mm

    The maximum diameter of the tool (adjacent no

    tool)

    125mm

    Maximum tool length

    300mm

    Maximum tool weight

    8Kg

    Chip-to-chip tool change time

    8s

    Tool shank air cleaning during tool change

    Yes

    Linear axis standard version

    Linear axis rapid traverse

    48m/min

    Linear axis acceleration

    7 m/s2

    Feed force

    6,000N

    CNC Rotary Table φ650 ×540mm

    Work table

    φ650 ×540mm

    Center hole

    Diameter 32H7

    Max load

    1,000Kg

    A Axis Rated torque

    3,760Nm

    C Axis Rated torque

    860Nm

    A Axis Tightening torque

    4600Nm

    C xis Tightening torque

    3,900Nm

    A Axis speed

    30rpm

    C Axis speed

    80rpm

    For rotary tables φ650 ×540mmT Slot

    T slot

    14H7

    Numbers

    7-parallel

    Three-dimensional graphic control system GNC61

    The main parameters

    Supplier

    Kede CNC Co., Ltd.

    Model

    GNC61 five-axis CNC system

    HMI

    15-inch color display,

    resolution 1024*768

    Cooling device

    Cooling box volume

    About 350L

    Pump head

    Above 20m

    Pump flow

    About 60L/min

    Precision water cooler cooling power

    7KW

    Rotate A-C axis

    Water cooling

    Electric spindle

    Water cooling

    Lubrication system

    Lubrication method

    Forced lubrication by

    automatic lubricating

    device

    Adjustable oil filling time interval

    Yes

    Adjustable oil filling amount

    Yes

    Low oil level machine alarm

    Yes

    Lubrication motor power

    25W

    System maximum pressure

    25kg/cm2

    Operation display resolution

    1nm

    Movement control

    Number of control axes

    7 axis 5 Axis simulation

    Linear interpolation

    5-axis interpolation

    Circular interpolation

    2-axis interpolation in

    plane\3-axis interpolation in

    space

    Helical interpolation

    Line and arc superimposed

    Conical interpolation

    Yes

    NURBS spline interpolation

    Yes

    Double spline interpolation

    Yes

    5-coordinate C-spline interpolation

    Yes

    Contour control

    Circular Interpolation of Arbitrary Plane

    Yes

    Helical interpolation

    Yes

    Thread cutting

    Yes

    Automatically adjust acceleration and

    deceleration according to contour shape

    Yes

    Contour smoothing according to set

    tolerance zone

    Yes

    Discrete point double arc fitting

    Yes

    Number of channels

    Spindle

    Read-ahead function

    2000

    Curvature optimization

    Yes

    5 Axis RTCP Function

    Yes

    Processing function

    Rigid tapping

    Yes

    Vector programming

    Yes

    Bevel processing

    TCPM)

    Yes

    Compensate

    Tool compensation

    Yes

    Pitch Error Compensation

    Yes

    two-way)

    Sag compensation

    Yes

    Bidirectional Accuracy Compensation

    Yes

    Coordinate System

    Cartesian coordinate system

    Yes

    Polar coordinate system

    Yes

    Coordinate transformation

    Pan, zoom, mirror, rotate

    Tool storage

    Tool table tool information storage

    Yes

    Calculation function

    Basic computing functions

    Yes

    Trigonometric function

    Yes

    Inverse trigonometric function

    Yes

    Power and square root functions

    Yes

    Rounding function

    Yes

    Data transmission

    Interface

    100M Ethernet

    Data transfer baud rate

    Above 19,200
