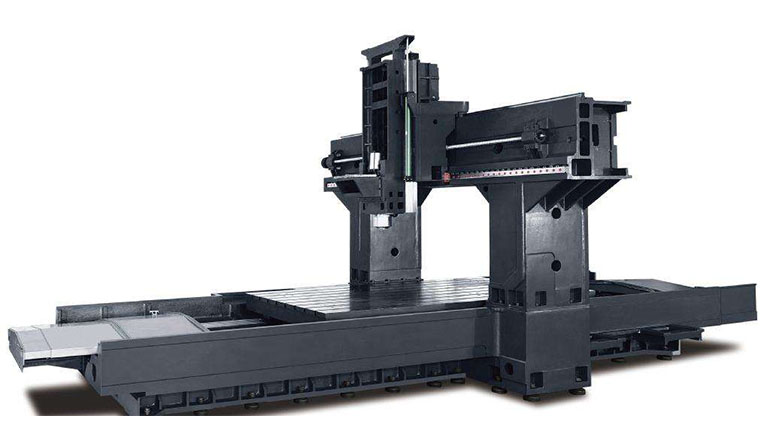

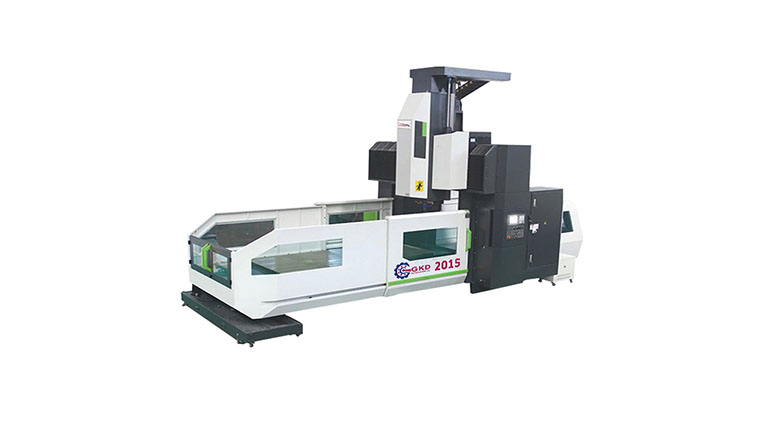

CNC-Gantry-Milling-Machine-Cente
Technical data
Specifications
Model
VMC3023
X-axis travel (mm)
3200
Y-axis travel (mm)
2500
Z axis travel (mm)
1250
Spindle nose to the table (mm)
250－1250
Gantry width (mm)
2500
Workbench area (mm)
2200*3000
Maximum load (kg)
7000
T-slot (number - size x spacing) (mm)
11-22*180
Three-axis fast-moving speed (m/min)
12/12/10
X/Y/Z axis rapid feed(m/min)
8/8/8
Spindle speed (r.p.m)
6000
Spindle type
BT50
Spindle motor power (KW)
18.5
Controller
Fanuc
Three-axis motor power (KW)
4.5/4.5/4.5
positioning accuracy (mm)
±0.005/300
Repeatability positioning accuracy (mm)
±0.003/300
Tool magazine type (pcs)
40 ATC
Tool max weight (KG)
15
Tool max length(mm)
300
Machine weight (kg)
30000
Machine size (mm)
7705×4650×5167
