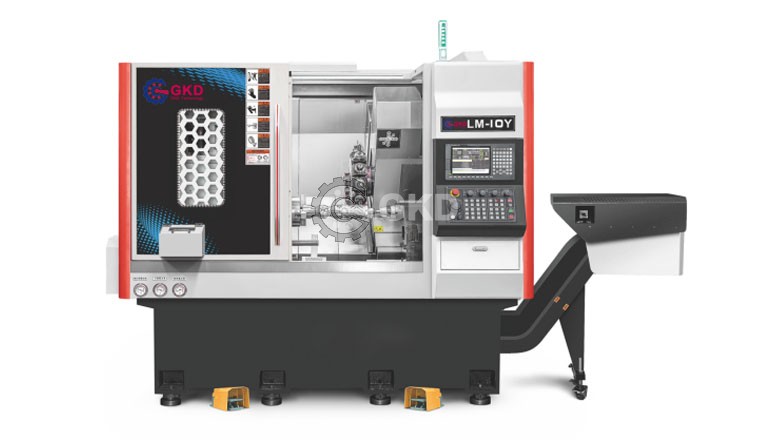

Model | LM10Y |
Spindle nose type | A2-6 |
Spindle through hole diameter (mm) | 82 |
Bar diameter (mm) | 70 |
Chuck size | 10 inch |
Controller | Fanuc |
Maximum turning diameter (mm) | 500 |
Max processing length (mm) | 500 |
Spindle speed (rpm) | 0-4500 |
Milling speed (rpm) | 0-4000 |
X/Z axis rapid feeding (m/min) | ≤25 |
Spindle indexing repeat positioning accuracy | ±0.005° |
Spindle indexing positioning accuracy | ±0.002° |
X/Y/Z axis positioning accuracy (mm) | 0.002 |
X/Y/Z axis repeat position accuracy (mm) | 0.003 |
X axis travel (mm) | 640 |
Y axis travel (mm) | 80 |
Z axis travel (mm) | 540 |

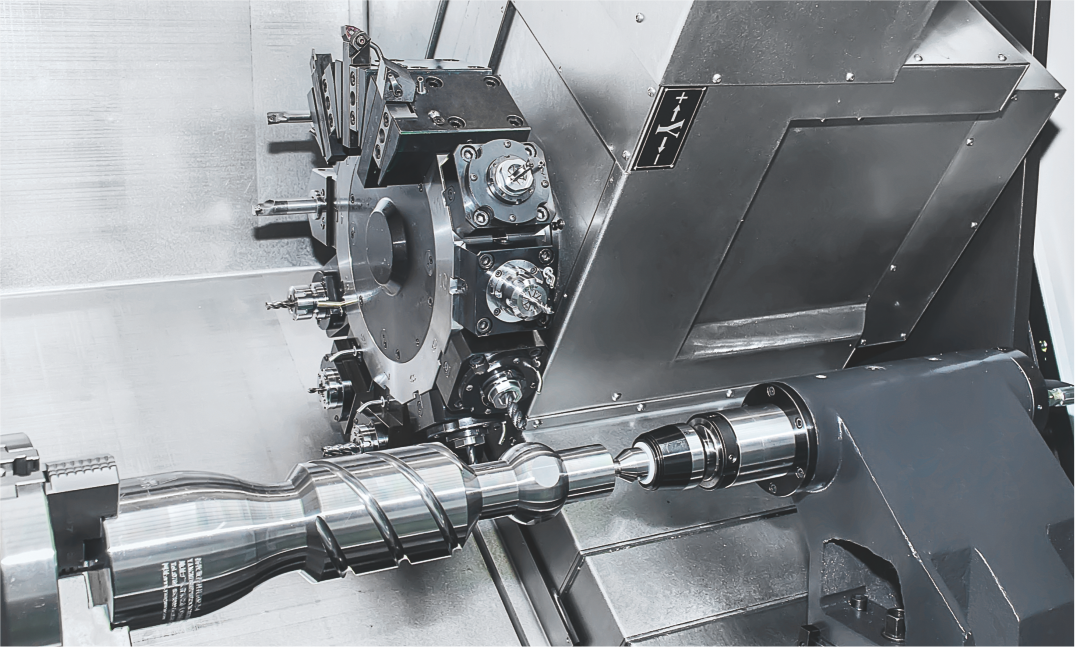

Number of turret (pcs) | 12 |
Spindle power (KW) | 15 |
X axis power (KW) | 2.0/1.7 |
Y axis power (KW) | 2.0/1.7 |
Z axis power (KW) | 2.0/1.7 |

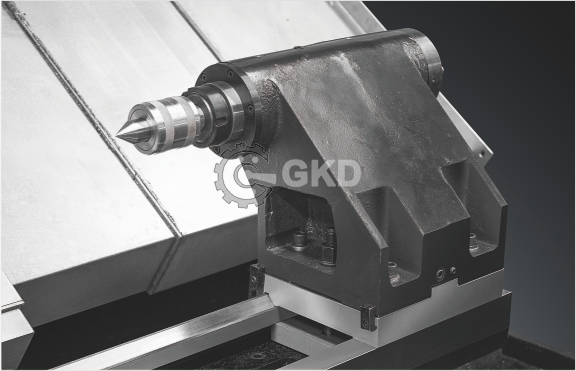

Hydraulic tailstock shaft diameter(mm) | 75 |
Tailstock travel(mm) | 450 |
Cutting pump power (KW) | 0.37 |
Hydraulic tank capacity (L) | 60 |
Tank volume (L) | 108 |
Machine size (mm) | L2800*W1900*H2200 |
Machine weight (KG) | 5000 |
