Technical data
Specifications
Model

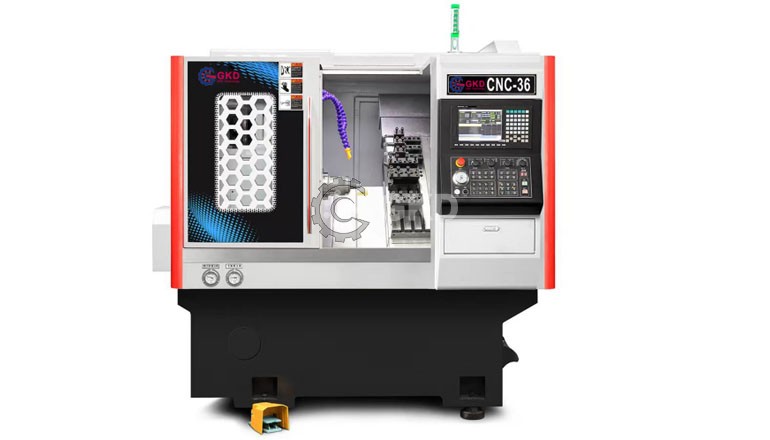

CNC36
Spindle nose type
A2-4
Spindle through-hole diameter (mm)
46
Bar through diameter (mm)
36
Maximum rotation diameter (mm)
500
Max processing length (mm)
300
Knife platform and spindle center height(mm)
65
Chuck size
5 inch
Controller
Syntec
X servo motor power (KW)
2.0
Z servo motor power (KW)
2.0
Spindle indexing repeat positioning accuracy
±0.005°
Spindle indexing positioning accuracy
±0.002°
Spindle speed (rpm)
0-6000
X/Z axis rapid feeding (m/min)
≤25
X/Z axis positioning accuracy (mm)
0.002
X/Z axis repeat position accuracy (mm)
0.003
X axis travel (mm)
960
Z axis travel (mm)
380
Number of turret (pcs)
12
Spindle power (KW)
5.5
X axis power (KW)
2.0
Z axis power (KW)
2.0
Cutting pump power (KW)
0.37
Hydraulic tank capacity (L)
60
Tank volume (L)
108
Machine size (mm)
L2029*W1700*H1922
Machine weight (KG)
2700
