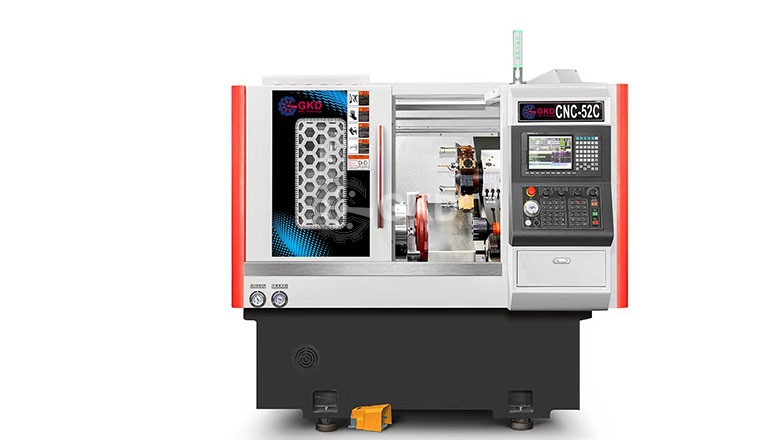

CNC turning lathe

CNC-TURNING-LATHE-CNC-52C

contact
  • SPECIFICATION
  • SUMMARY DETAILS
  • VIDEOS
  • Model

    CNC52C

    Spindle nose type

    A2-6

    Spindle through hole diameter (mm)

    66

    Bar diameter (mm)

    52

    Chuck size

    8 inch

    Controller

    Syntec

    Maximum turning diameter (mm)

    500

    Max turning and milling diameter (mm)

    300

    Max processing length (mm)

    500

    Spindle speed (rpm)

    0-4500

    Milling speed (rpm)

    0-4000

    X/Z axis rapid feeding (m/min)

    ≤25

    Spindle indexing repeat positioning accuracy

    ±0.005°

    Spindle indexing positioning accuracy

    ±0.002°

    X/Z axis positioning accuracy (mm)

    0.002

    X/Z axis repeat position accuracy (mm)

    0.003

    X axis travel (mm)

    640

    Z axis travel (mm)

    540

    Number of turret (pcs)

    12

    Spindle power (KW)

    11

    X axis power (KW)

       2.0

    Z axis power (KW)

    2.0

    Milling shaft servo and power (KW)

    5.0/3.9

    Cutting pump power (KW)

    0.37

    Hydraulic tank capacity (L)

    60

    Tank volume (L)

    125

    Machine size (mm)

    L2260*W1800*H2200

    Machine weight (KG)

    4800
