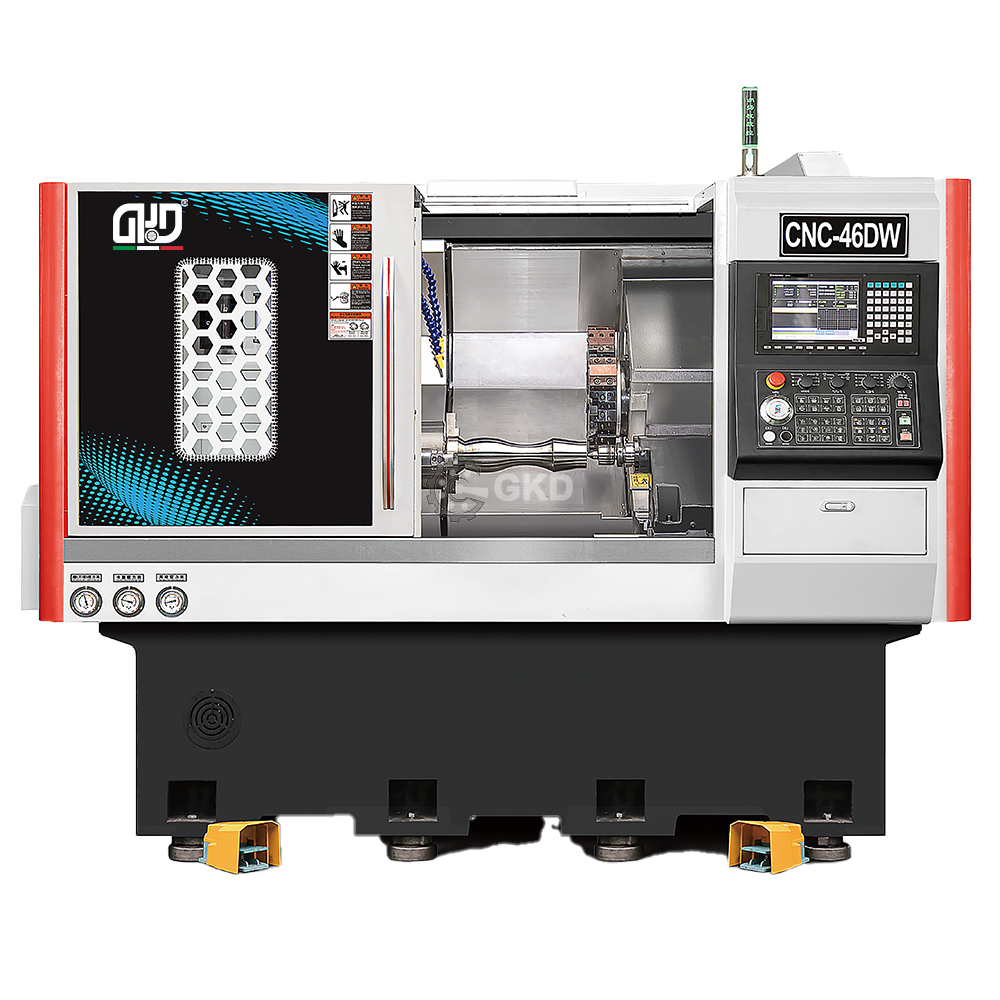

Model | CNC-46DW |
Spindle nose type | A2-4 |
Spindle through-hole diameter (mm) | 46 |
Bar through diameter (mm) | 36 |
Maximum rotation diameter (mm) | 500 |
Max processing length (mm) | 300 |
Knife platform and spindle center height(mm) | 65 |
Chuck size | 5 inch |
Controller | Syntec |
X servo motor power (KW) | 2.0 |
Z servo motor power (KW) | 2.0 |
Spindle indexing repeat positioning accuracy | ±0.005° |
Spindle indexing positioning accuracy | ±0.002° |
Spindle speed (rpm) | 0-6000 |
X/Z axis rapid feeding (m/min) | ≤25 |
X/Z axis positioning accuracy (mm) | 0.002 |
X/Z axis repeat position accuracy (mm) | 0.003 |
X axis travel (mm) | 960 |
Z axis travel (mm) | 380 |
Number of turret (pcs) | 12 |
Spindle power (KW) | 5.5 |
X axis power (KW) | 2.0 |
Z axis power (KW) | 2.0 |
Cutting pump power (KW) | 0.37 |
Hydraulic tank capacity (L) | 60 |
Tank volume (L) | 108 |
Machine size (mm) | L2029*W1700*H1922 |
Machine weight (KG) | 2700 |
