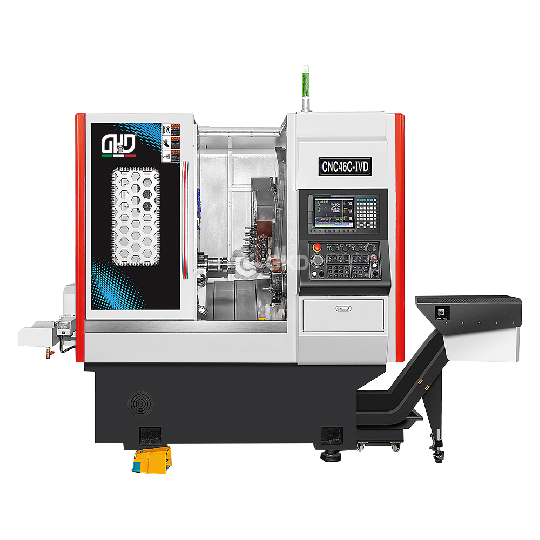

CNC turning lathe

CNC-TURNING-LATHE-CNC-46C-IVD

contact
  • SPECIFICATION
  • SUMMARY DETAILS
  • VIDEOS
  • Model

    CNC-46C-IVD

    Spindle nose type

    A2-4

    Spindle through-hole diameter (mm)

    46

    Bar through diameter (mm)

    36

    Maximum rotation diameter (mm)

    500

    Max processing length (mm)

    300

    Knife platform and spindle center height(mm)

    65

    Chuck size

    5 inch

    Controller

    Syntec

    X servo motor power (KW)

    2.0

    Z servo motor power (KW)

    2.0

    Spindle indexing repeat positioning accuracy

    ±0.005°

    Spindle indexing  positioning accuracy

    ±0.002°

    Spindle speed (rpm)

    0-6000

    X/Z axis rapid feeding (m/min)

    ≤25

    X/Z axis positioning accuracy (mm)

    0.002

    X/Z axis repeat position accuracy (mm)

    0.003

    X axis travel (mm)

    960

    Z axis travel (mm)

    380

    Number of turret (pcs)

    12

    Spindle power (KW)

    5.5

    X axis power (KW)

       2.0

    Z axis power (KW)

    2.0

    Cutting pump power (KW)

    0.37



    Hydraulic tank capacity (L)

    60

    Tank volume (L)

    108

    Machine size (mm)

    L2029*W1700*H1922

    Machine weight (KG)

    2700
